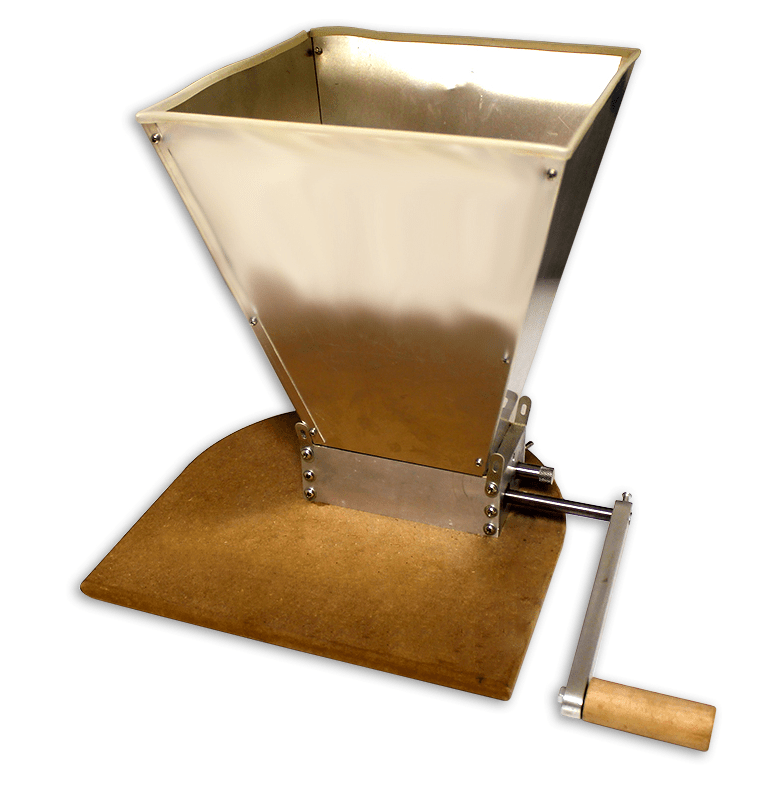

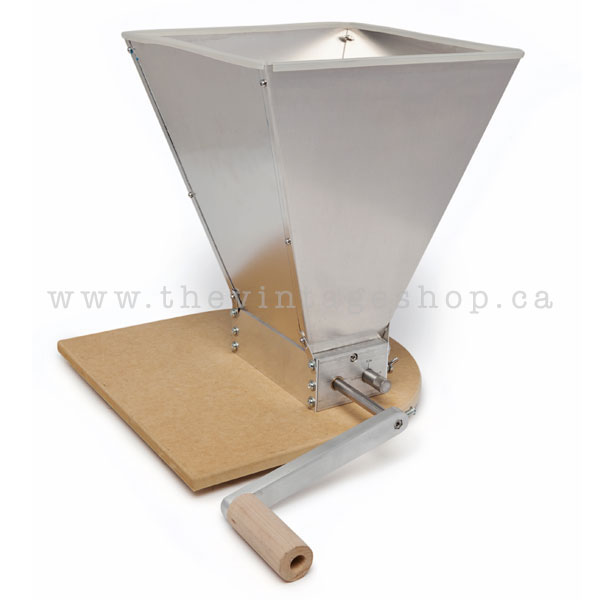

EVIL TWIN 2-ROLLER GRAIN MILL Barley and Grain Crusher from Vintage Shop

$110.00

Evil Twin Roller Mill – This Vintage Shop Mill from Canada is a great tool for efficiently grinding malted and non-malted barleys, corn, and grains. Malt says fresher longer unground. Having your own mill lets you grind just before the boil keeping your grain fresher.  This Mill is a great tool for efficiently grinding malted and non-malted barleys, pre-cracked corn, and grains. Adjustable gap setting for grinding grains and other materials to perfection. It comes with a longer shaft so you won’t hit the pail while grinding with the hand crank. The rollers are made of Stainless Steel. The Standard Hopper holds 10 lbs. It has a solid base and can be easily attached to a drill with no extra parts. When using a drill at 500 RPM you can crush up to 6 pounds per minute. Base plate is included and easily adjusts to different size buckets or tables.

**Assembly is required  **Buckets and Grain are not included.

12 in stock (can be backordered)

Description

The Evil Twin Grain Mill is constructed using materials that will last a lifetime.  Cold rolled steel for the rollers, 6061 Aluminum body and hopper and oil impregnated brass bushings.

  • Includes, hopper, crank handle and base plate (Optionally a nice project is to mount it to a bucket lid)
  • Width and roller diameter is optimized for use with power drill

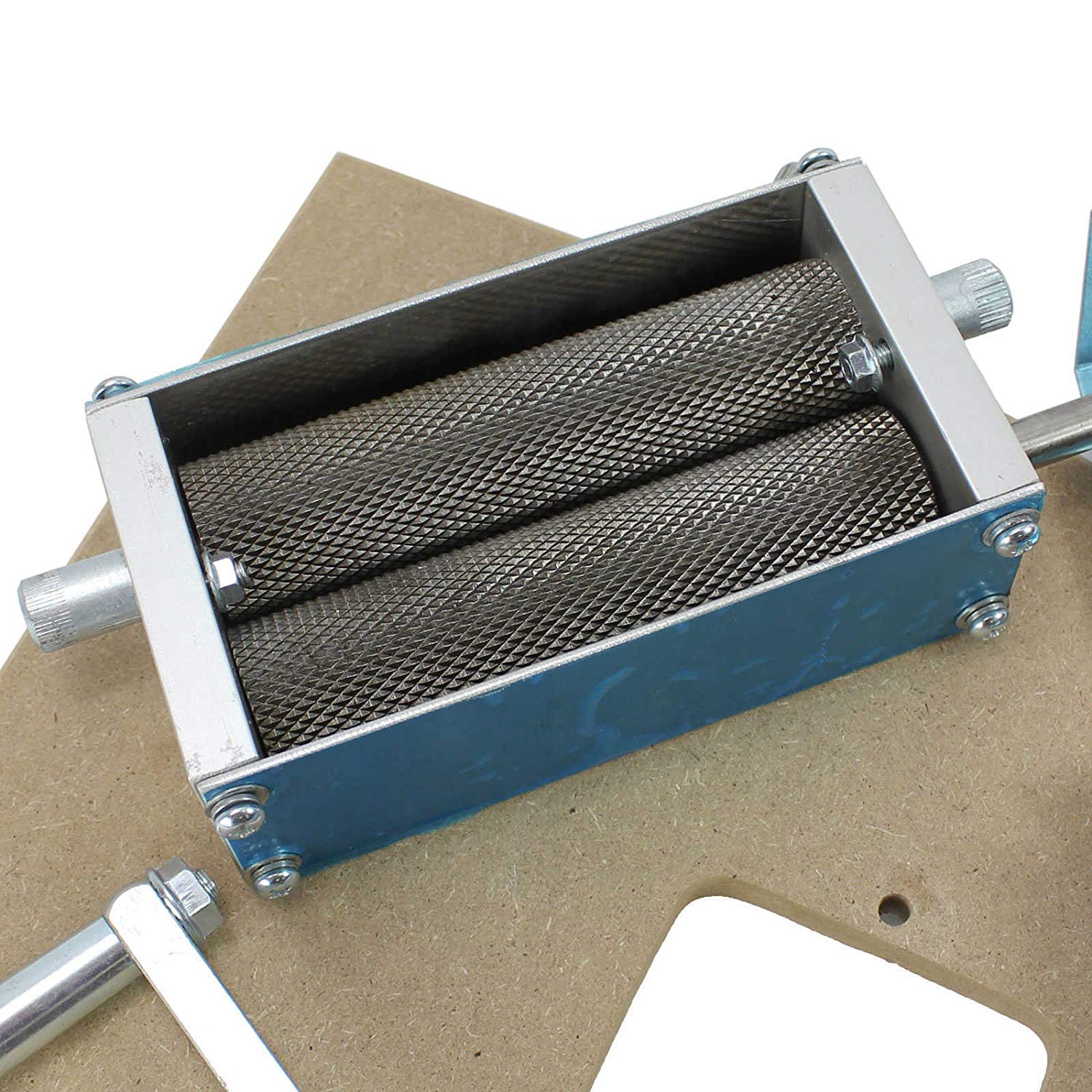

  • Adjustable rollers at both ends to give uniform crush

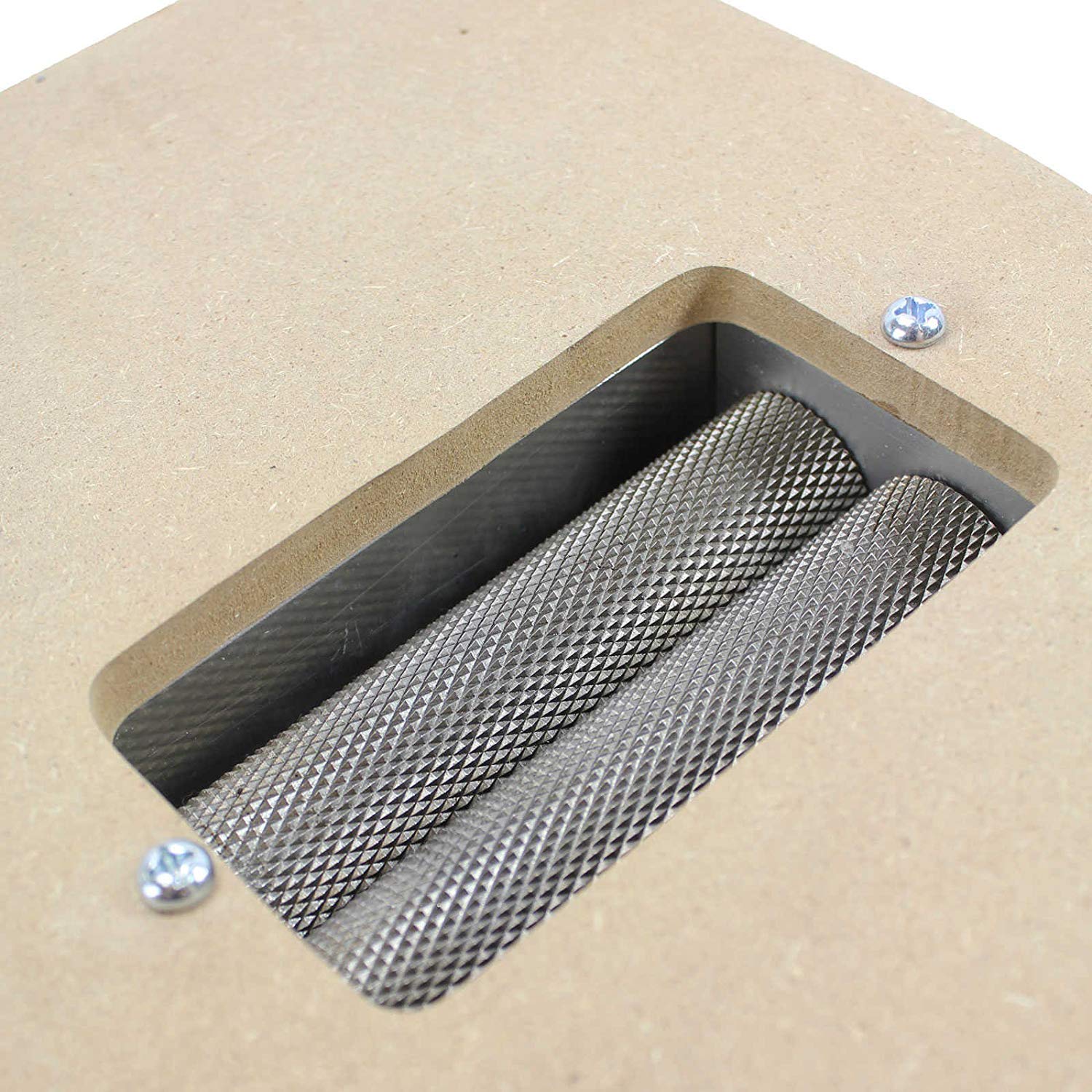

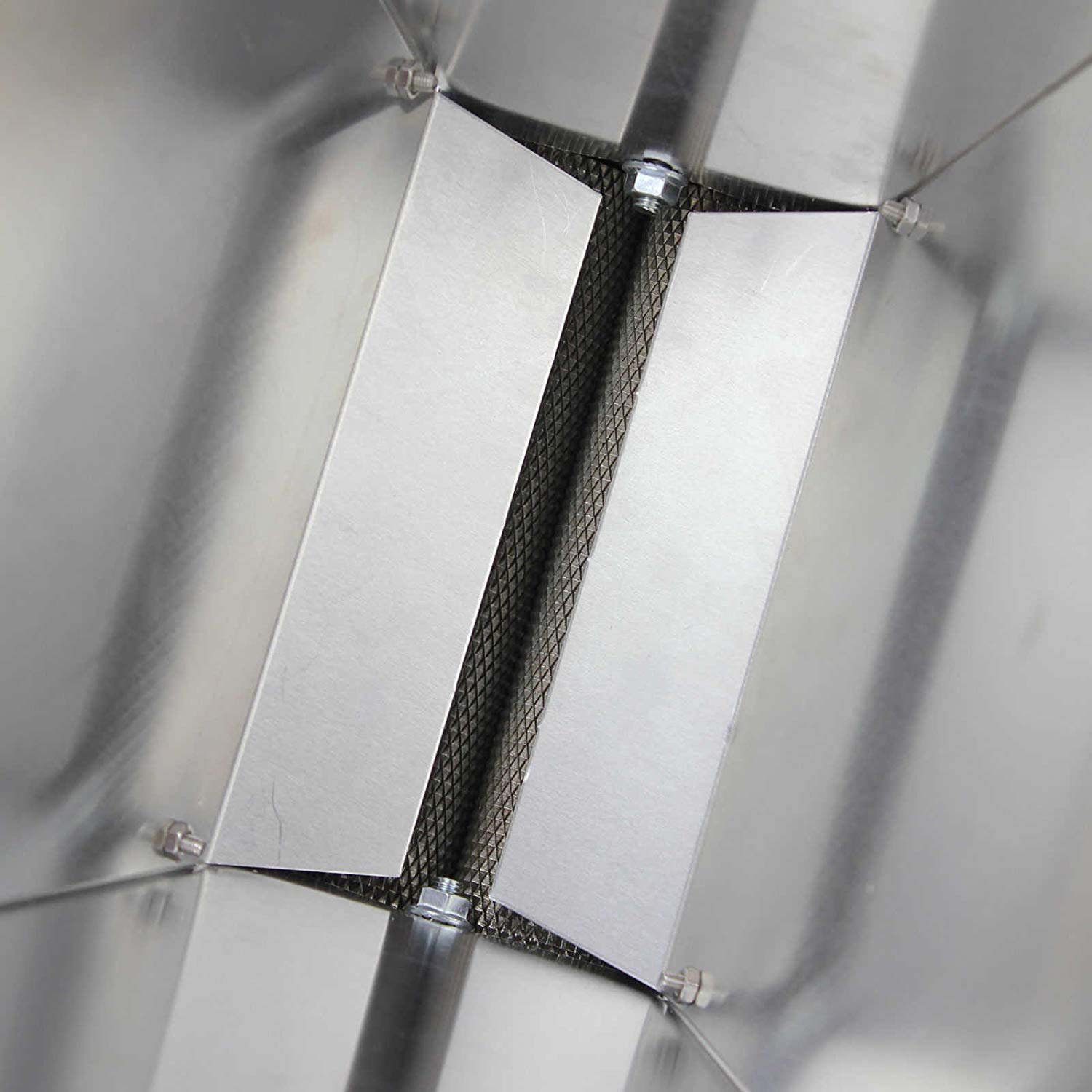

  • 12 TPI knurl to efficiently pull grain through rollers while leaving hull intact to form an excellent filter bed for spargingThe hopper holds 10lb at one time.

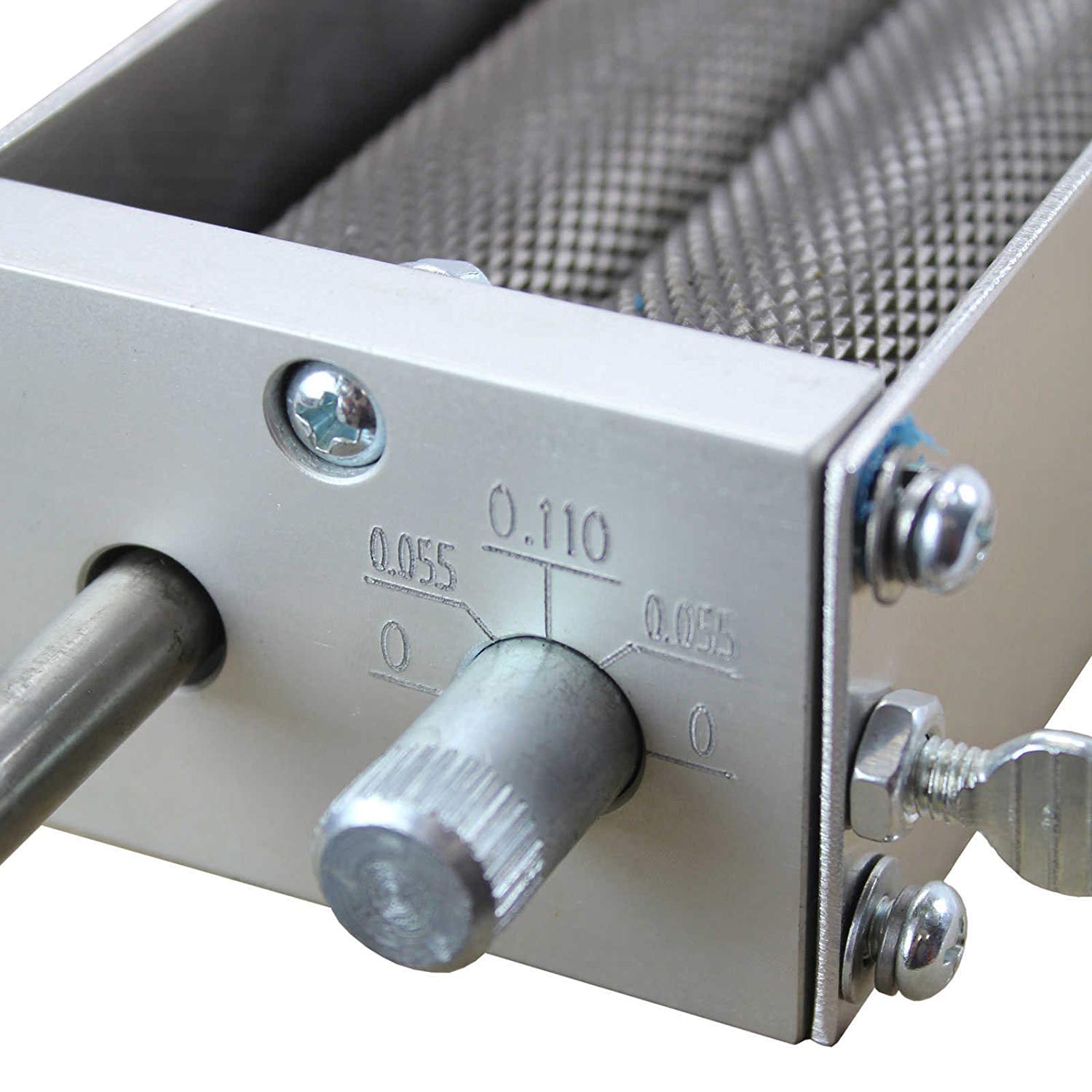

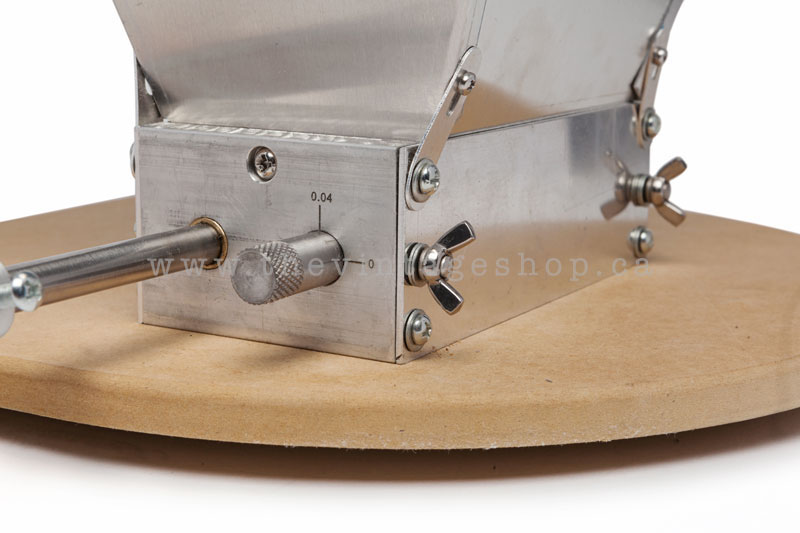

  • It has an easily adjustable gap setting so you can grind grains and other materials to perfection.

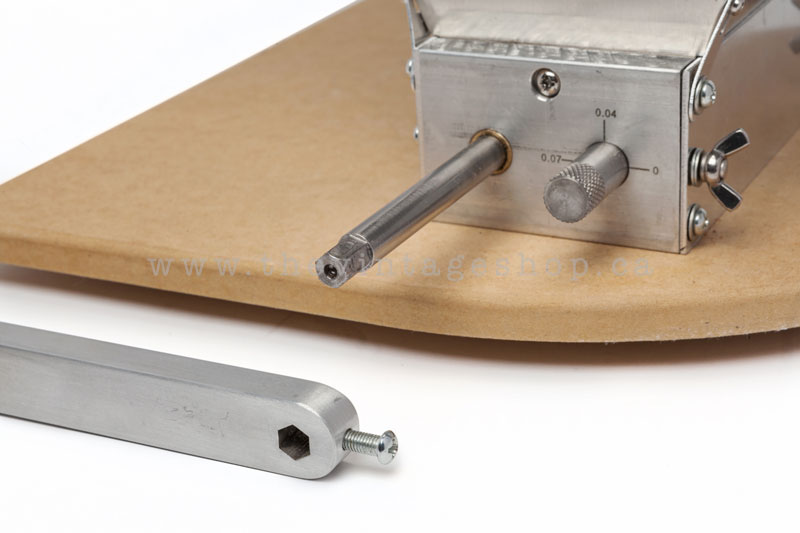

  • It comes with a longer shaft so you won’t hit the pail while grinding with the hand crank. The roller are made of Stainless Steel.
  • The Standard Hopper holds 10 lbs.
  • It has a solid base and can be easily attached to a drill with no extra parts.
  • When using a drill at 500 RPM you can crush up to 6 pounds per minute.
  • It is also easily adjusted to different size buckets.
  • Rollers made of Stainless Steel
  • Hopper screws stainless steel.
  • Frame, hand crank and Hopper made of aluminum.

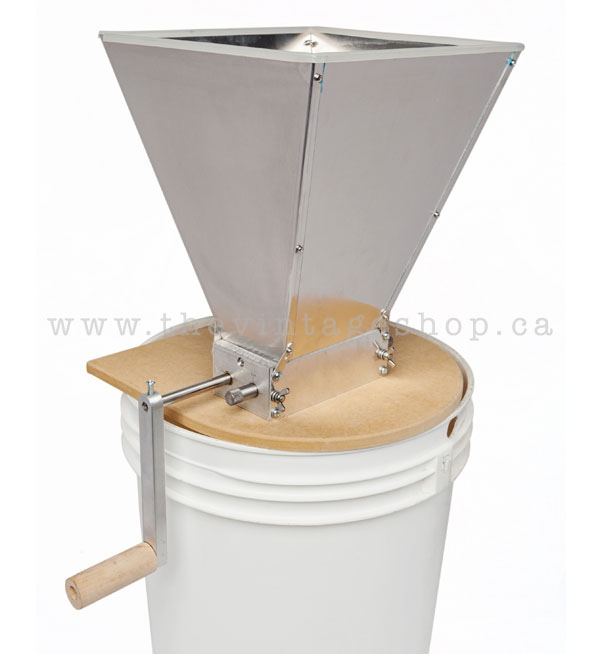

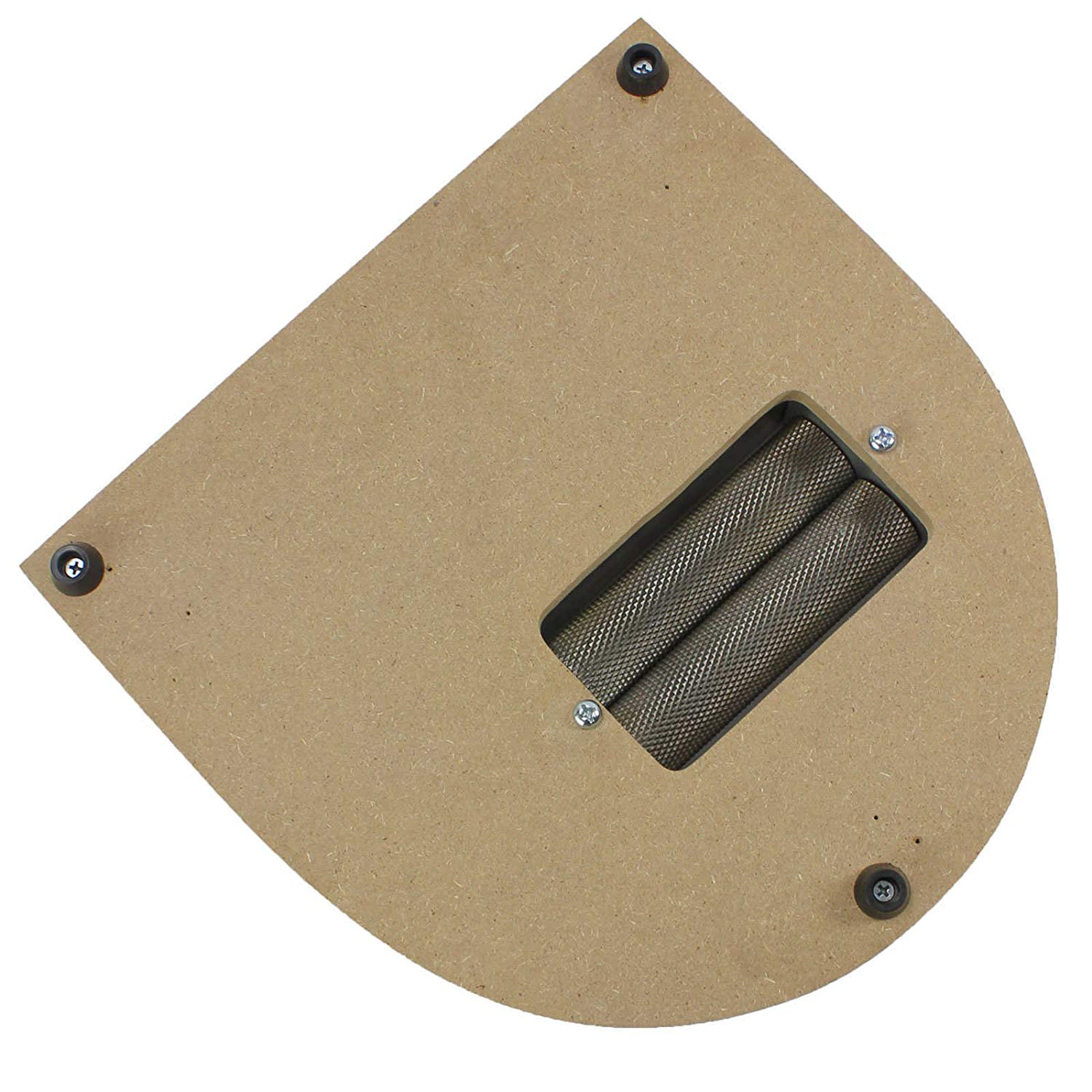

BASE PLATE: Use the base plate to secure the Evil Twin over a bucket (as pictured – included) or free-standing on the convenient rubber feet.

DIMENSIONS: Total height = 10.35 inch Hopper dimensions at top = 8.77 x 8.26 inch

Total width including handle = 13 inch

Footprint size of grinder = 5.9 x 3.2 inch

Baseplate = 11.81 x 11.81 x 0.4 inch

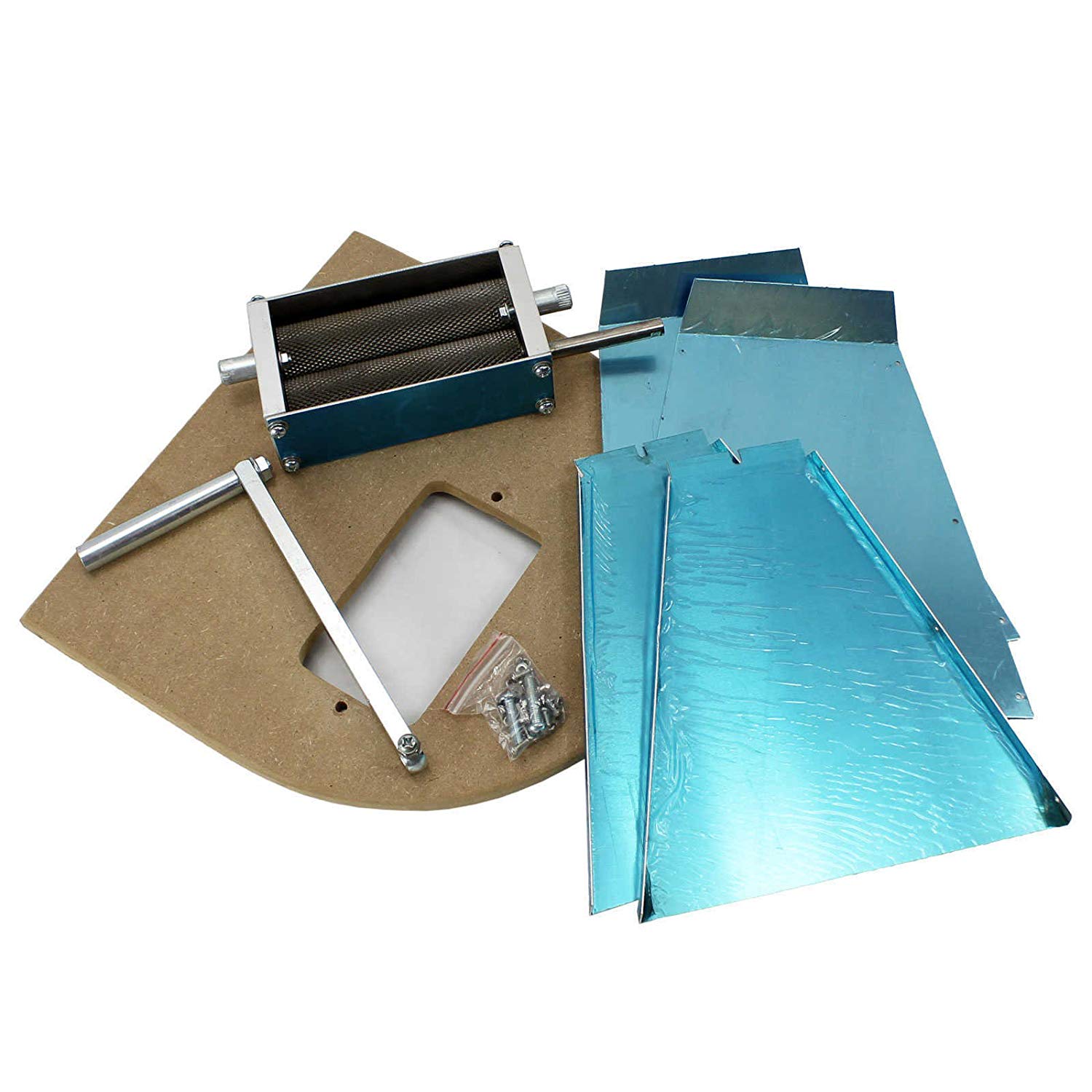

*** Sold as a kit – bolts and nuts for hopper assembly and base plate are included

*** Bucket for illustrative purposes only – not included

Additional information

Weight 128 oz
Dimensions 12 × 6 × 6 in
