The Chillout MKIII Super Efficient WORT CHILLER – 20 Cold Plate Heat Exchanger WC121 KL07412

$80.00

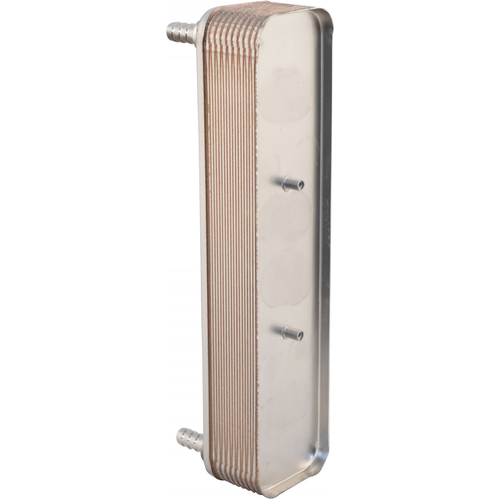

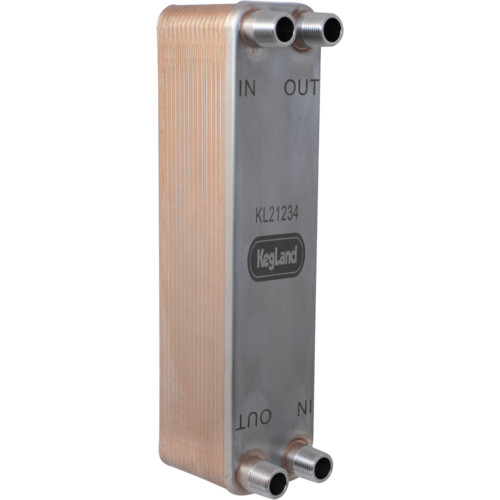

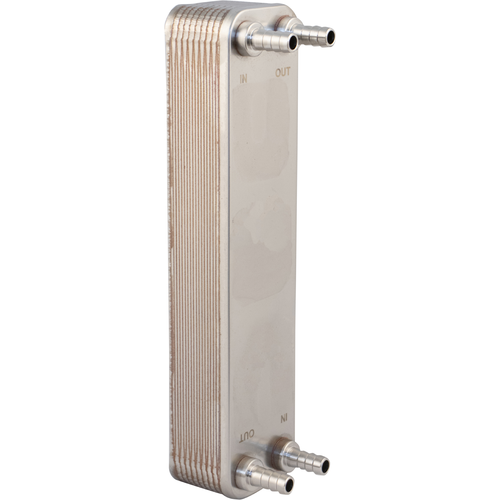

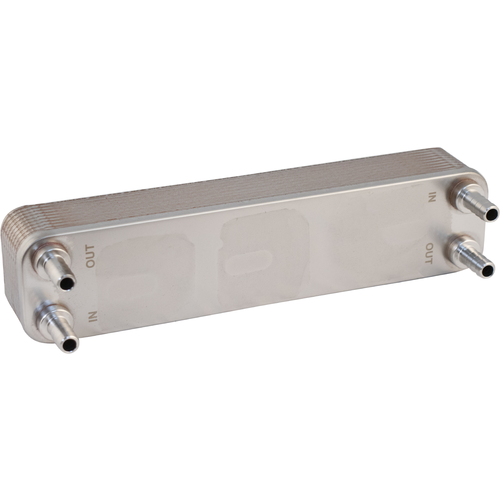

Chill your wort in a tenth of the time!  The Chillout 20 plate heat exchanger is the fast way to chill your wort to yeast pitching temperature and get your fermentation off to a quick healthy start.  The Chillout’s high thermal efficiency and turbulent-flow design moves the hot wort and cool water in opposite directions and creates strong turbulence.  The Chillout is made from stainless steel and vacuum brazed together with pure copper. It also has ripples up and down each plate. This creates more surface area and improves heat transfer.  Includes 1/2″ nipples.  Use 7/16 poly tubing for the cold side and 3/8″ silicone for the hot side.  The 1/2″ silicone seems just a bit loose to me.

1 in stock

Description

The wort must run over 20 cooled copper plates in one direction, while cooling water flows the opposite direction. This efficient design ensures the hot wort is always in contact with a fresh supply of cool water – so no stirring or agitation is required!   Makes the entire process of chilling wort quicker and more efficient than ever before.

  • Gives the best cold break possible
  • Cools wort to the ideal pitching temperature on the first pass
  • Includes 4 nominally sized 1/2″ barb nipples.
  • Use 3/8″ Silicone on the wort side and 7/16″ poly tubing on the cold water side
  • High Grade Copper and stainless conduction
  • Dimensions: 12.4″ L x 2.9″ W x 2″ H
  • Kegland Part Number: KL07412

Enables a more efficient cold break to remove unwanted proteins and particles from your beer.  Cleaner aroma profile because of decreased DMS production, giving you the more pronounced aroma that you worked so hard for.

When chilling one thing you want to have is cold break.  Cold break is the coagulation of proteins and other stuff floating in your wort.  This coagulation contributes to clean appearance, reduction in chill haze, and a clean flavor in lagers.

Use 3/8 inch tubing and hose clamps to connect the chiller to your wort in and out feeds (not included).  The water connections are the same.

Additional Parts Need to be scrounged and are not included:  Depends on your installation.  Kitchen faucet to hose adaptor, 3/8″ hose adaptor, 7/16″ poly tubing from sink to chiller and then to drain, 3/8″ High Temp Tubing from kettle to chiller and then to fermenter, hose clamps.

Additional information

Weight 144 oz
Dimensions 12 × 5 × 5 in
