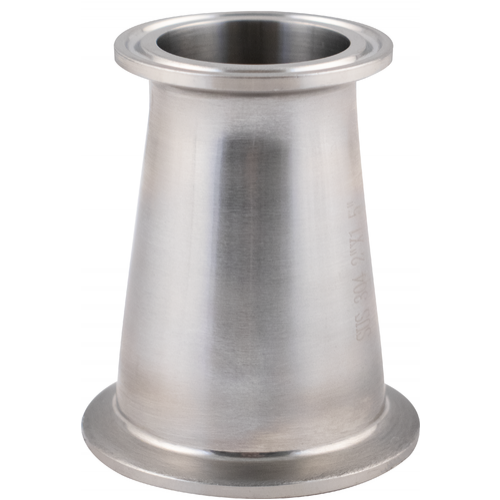

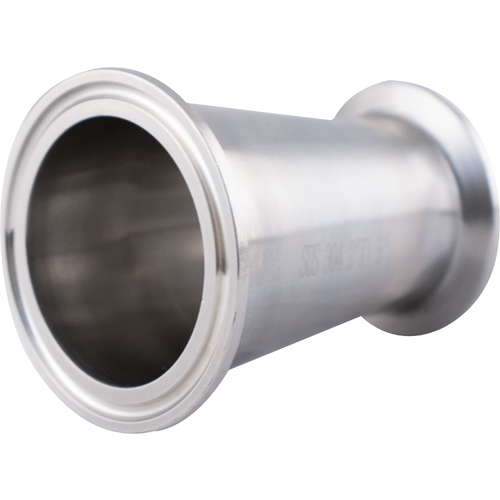

CONCENTRIC REDUCER Stainless Steel Tri-Clamp 2.5″ To 2″ Tri-Clover 304 SS (Special Order)

$24.95

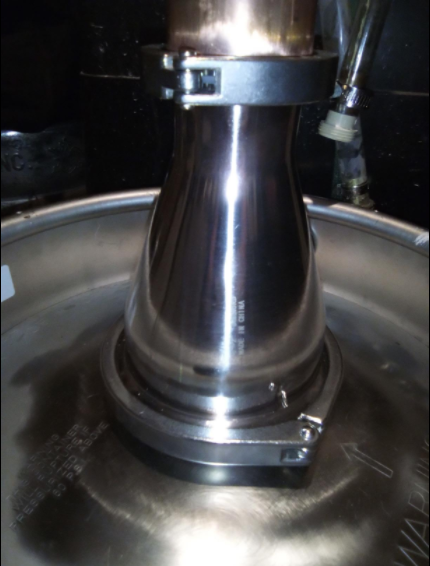

Reduces 2.5″ Tri-Clover to 2″ Tri-Clover.  A concentric reducer fitting to connect two pipes of different diameters that are along the same pipe axis.  itting clamps to tubing on both ends for a non-permanent seal, providing easy take-down access.  This sanitary concentric reducer is often used inline on a vertical flow application, such as a distilling condenser.  The 2″ end will fit a standard USA beer keg.  Made of stainless steel 304 for resistance to corrosion and high temperatures and has a maximum operating pressure rating of 250 pounds per square inch (psi) at 70 Degrees Fahrenheit ambient temperature.  Gaskets and clamps are not included (See other items).  This part is special order, go ahead and purchase, it will be sent to you in a few days.

Available on backorder

SKU: TRICLAMP_REDUCER_2.5TO2 Categories: ,

Description

This reducer sanitary fitting is made of stainless steel 304 and clamps to tubing on both ends.  One 2″ clamp and 1 2.5″ clamp (with gaskets) are required but not included. Used in the food, beverage, biotech, pharmaceutical, dairy, and other sanitary process industries to transport fluids through pipe lines.  We have 1.5″ and 2″ Tri-Clamp fittings in a a range of shapes and sizes.

  • Reducer sanitary fitting can be used to connect two pipes of different diameters that are along the same pipe axis.
  • High quality 304 stainless steel, having durable and long service life.
  • Tube OD: reducing 2.5″ tube OD to 2″ tube OD .
  • Ferrule Size(MM end):mm ferrule fits 2″ tri clamp
  • Ferrule Size(MM end):mm ferrule fits 2.5″ tri clamp
  • Tri clamp size: reducing 2.5″ Tri Clamp / Clover / Sanitary to 2″ Tri Clamp / Clover / Sanitary – (mm to mm Ferrule OD).
  • Fitting clamps to tubing on both ends for a non-permanent seal, providing take-down access.

Concentric means the reduction is a constant angle down the length of the reducer.  The opposite would be Eccentric, one side would be straight at 90 degrees and the other side would slant.

Additional information

Weight 8 oz
Dimensions 6 × 4 × 4 in
