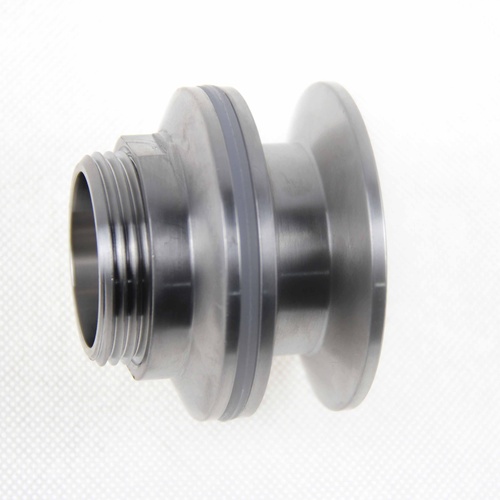

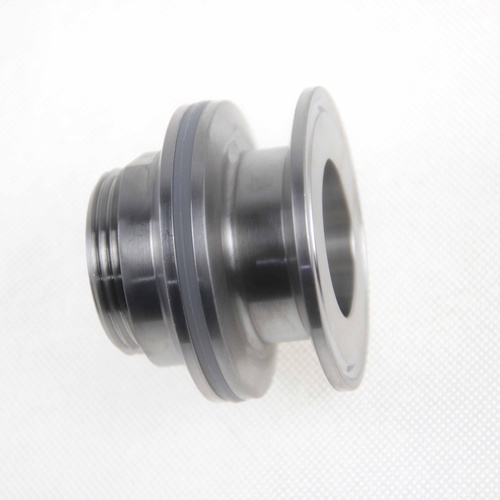

2″ TRICLAMP Weldless Bulkhead Kit Stainless Steel Tri-Clover Threaded Clamp Nut and Silicone Gaskets (Tri-Clamp)

$24.95

Add a 2″ tri-clamp port to any tank or lid without welding.  This is a 304 stainless steel weldless bulkhead. Just drill a 45-47 mm hole and tighten this item to your vessel wall.  For distilling purposes this is just what you need to add a 2″ Triclamp column or drain to any boiler.

4 in stock

Description

  • The 2″ Triclover (TC) weldless bulkhead flange allows you to add a TC port to any tank or kettle with absolutely no welding or soldering.
  • Add a 2″ TC flange to virtually any vessel! Just drill a 47mm hole and tighten the locknut. (Please Google ‘drilling stainless’ or have it done)
  • These are extremely high quality pieces machined out of 304SS and polished to perfection.  Much nicer than shown!

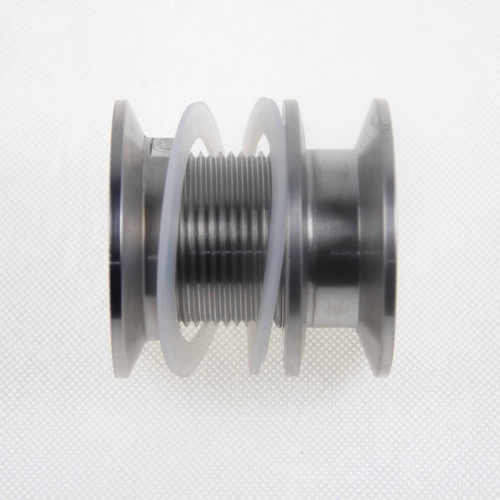

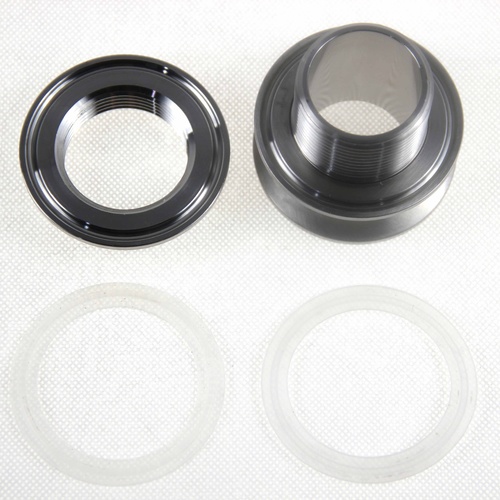

  • Two silicone single ridge TC gaskets are included.  The ridge goes against the TC the flat side goes against the vessel.
  • The outer front of the flange does not have flats for a wrench. The easiest way to hold the flange for tightening is to clamp any other TC parts on with the gasket and clamp. Once tight, you can insert a long rod or screw driver into the hole of the wingnut.

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in
