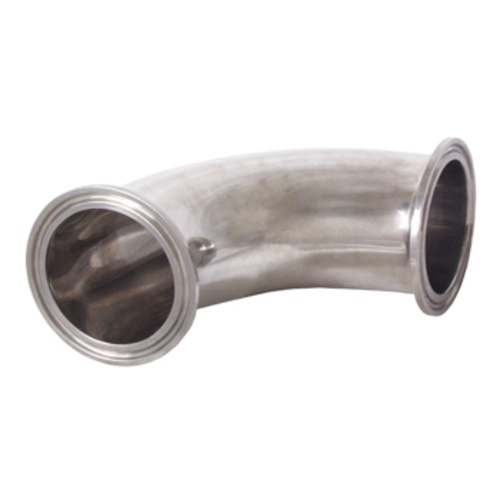

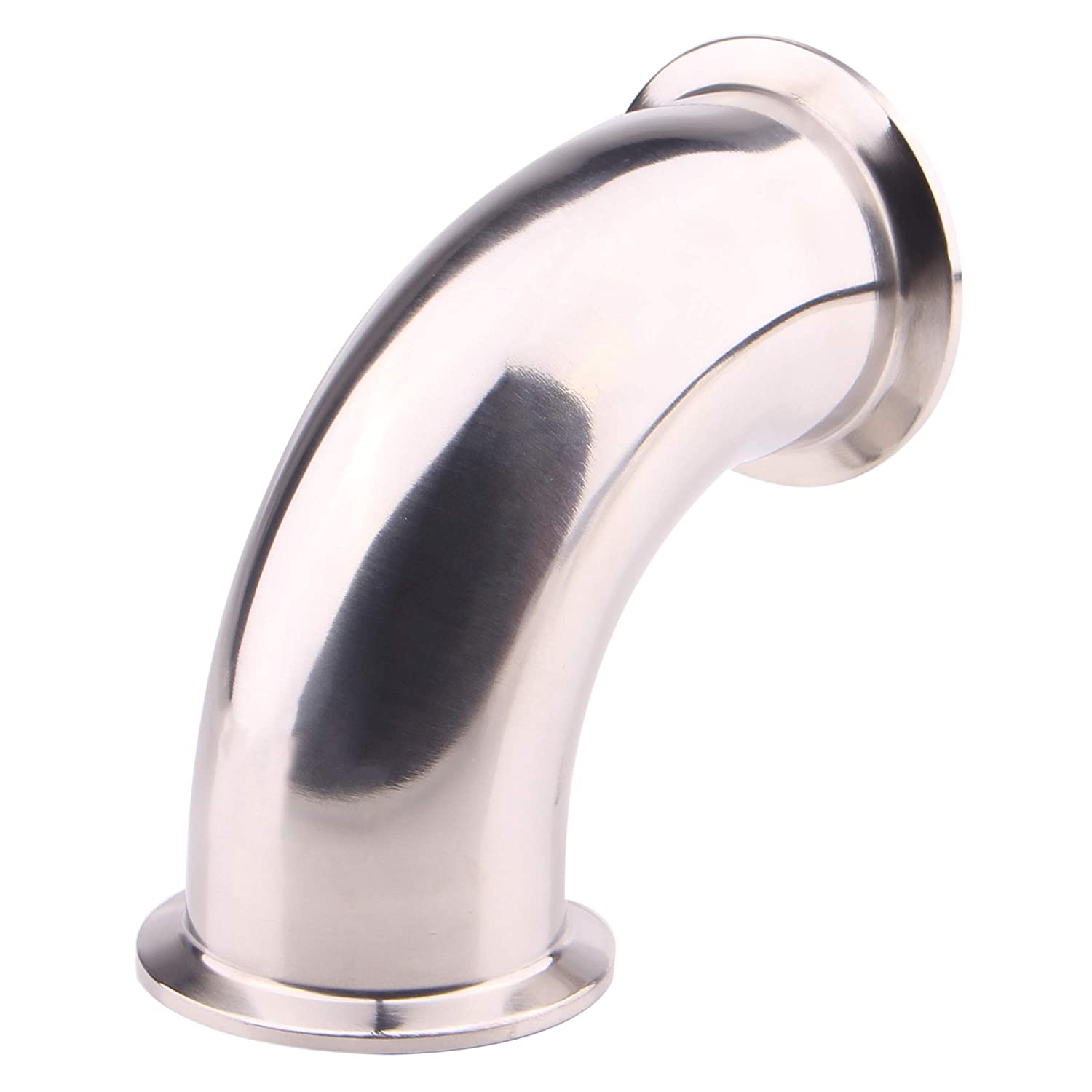

2″ TRI-CLAMP ELBOW 90 Degree Sanitary Ferrule Elbow Pipe Fitting SS304 2 Inch Clover TriClamp

$19.95

Here’s a standard 2″ Tri Clamp 90° Elbow fitting.  This one is sanitary standard 304 stainless steel for resistance to corrosion and high temperatures.  It has a maximum operating pressure rating of 250 psi at 70℉.  It is suitable for use in food, beverage., and dairy applications.  Our 2″ Tri Clover fittings perform well with all other brands.  The fit is standard and you can expect it to clamp right on.  Two sealing ring gaskets and two clamps will be required (Not included, see our other items).

4 in stock

SKU: TRICLAMP_2IN_90_ELBOW Categories: ,

Description

The TRI CLAMP type can be used with the tri clamp gasket and tri clamp clover clamp.  Two gaskets are required (Not included see other items) to reduce the possibility of leakage

The elbow’s connection is beveled to allow for a smooth bore and better fluid flow. 90-degree clamp elbow for connecting two pipes or tubes at an angle.

  • 90-degree clamp elbow for connecting two pipes or tubes at an angle
  • Food Grade Material
  • Fitting connects to fitting on both ends
  • Tube ID is 33mm.
  • Quality Construction, Reasonable Price
  • High Pressure Durable,ensure tight seals and reduce the possibility of leakage
  • Maximum operating pressure rating of 250 psi at 70 degrees F ambient temperature

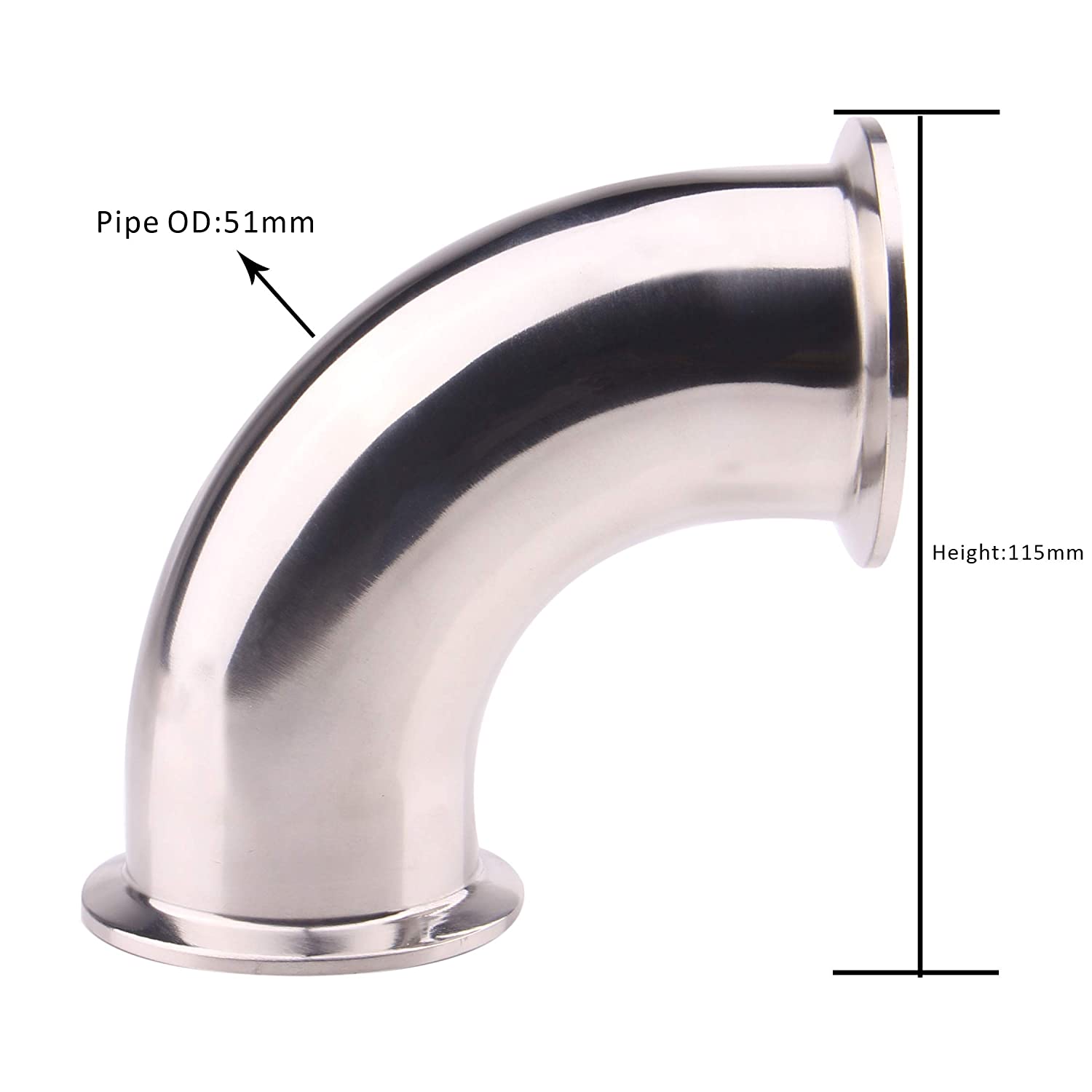

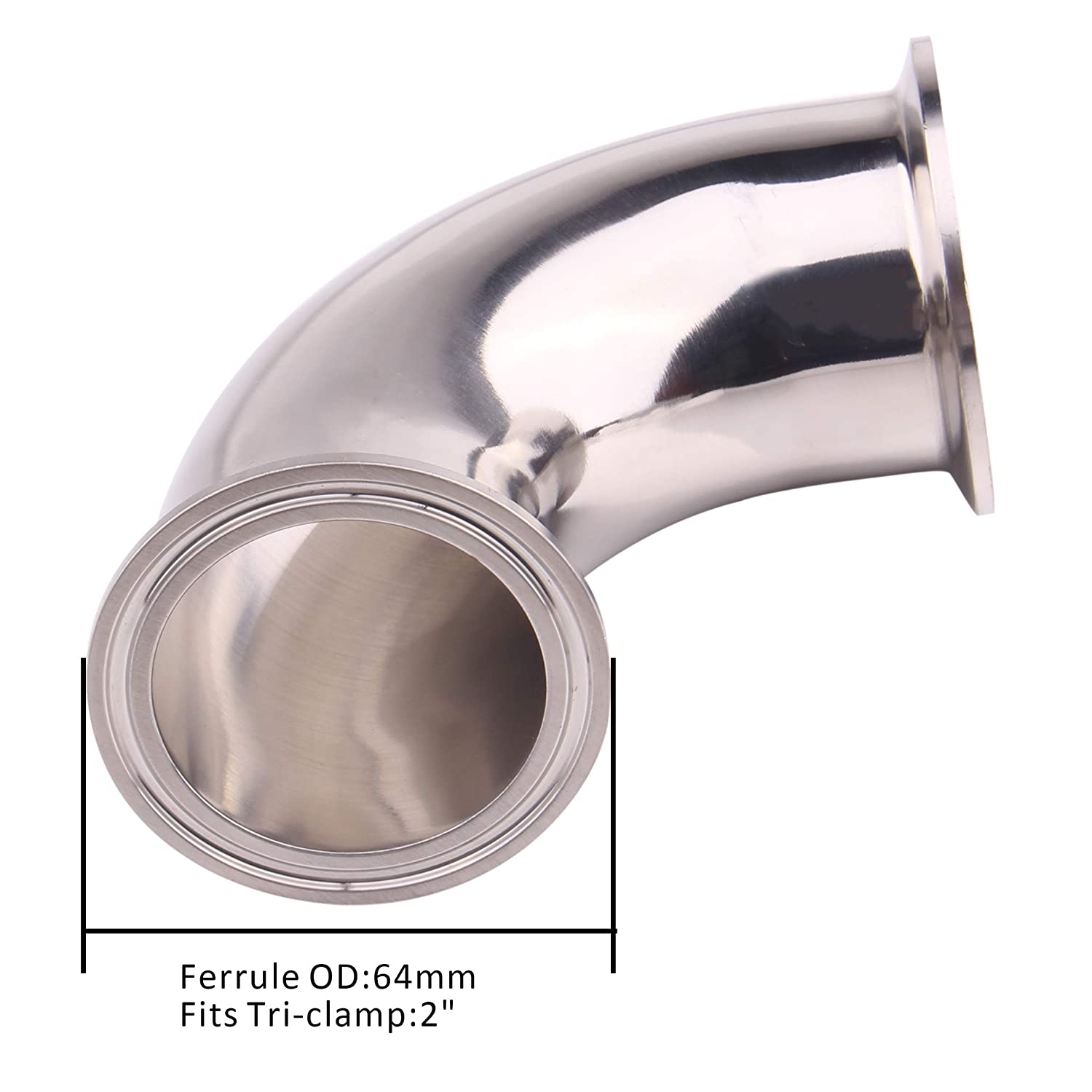

  • Pipe OD:51mm, Ferrule OD:64MM, Fits Tri-clamp:2″

Additional information

Weight 16 oz
Dimensions 8 × 8 × 3 in
